Principles of Data Modeling in Power BI

Data modeling in Power BI is the process of designing a logical and efficient structure for organizing data so that it supports accurate analysis and reporting.

Good data models serve as the foundation for insightful business intelligence by linking disparate data sources into a unified, understandable format. They enable intuitive querying, fast report generation, and flexible visualization.

Understanding the basic principles of data modeling within Power BI equips business analysts and data professionals to build scalable, maintainable, and performant BI solutions tailored to organizational needs.

Power BI data models typically follow relational design principles but are enhanced with features specific to analytical workloads.

These models organize data into tables with defined relationships, keys, and hierarchies, enabling slicing, dicing, and aggregation of large datasets.

Key Principles of Data Modeling in Power BI

The core principles stress simplicity, efficiency, and clarity, ensuring models are both user-friendly and optimized for quick query response.

Power BI supports a variety of modeling paradigms including star schema, snowflake schema, and flat tables, but star schema is widely preferred for its balance of simplicity and analytical power.

1. Star Schema Design

Organize data into fact tables (containing measurable, quantitative data such as sales or transactions) and dimension tables (descriptive attributes like dates, products, or customers).

Fact tables are centrally located and link directly to multiple dimension tables, creating a star-like shape.

This design optimizes query performance and simplifies understanding for BI users.

2. Establish Clear Relationships

Define relationships between tables based on unique keys (primary keys in dimension tables, foreign keys in fact tables).

Use one-to-many cardinality where one dimension record relates to many fact records.

Ensure relationships have single direction or both directions, depending on filtering needs, but avoid unnecessarily complex bi-directional filters to reduce query time.

3. Normalize Dimensions, Denormalize Facts

Dimension tables are generally normalized to avoid redundancy (split into logical sub-tables if needed).

Fact tables are often denormalized to include all performance metrics in one place, minimizing joins during analysis.

4. Use Consistent and Meaningful Naming

Name tables and columns clearly and consistently to improve model readability and maintainability.

Avoid special characters and spaces; use underscores or camelCase as needed.

5. Create Calculated Columns and Measures Wisely

Use calculated columns for adding data computed row-by-row within tables.

Use measures for aggregations and calculations performed dynamically during query execution using DAX formulas.

Prefer measures over calculated columns to optimize model size and performance.

6. Manage Data Types Appropriately: Assign correct data types (text, decimal number, whole number, date/time) to each column to enable accurate filtering, sorting, and calculations.

7. Implement Hierarchies: Create hierarchies on dimension tables (e.g., Year > Quarter > Month > Day) to facilitate drill-down and intuitive exploration in reports.

8. Apply Row-Level Security (RLS): Design models to support security by filtering data access based on roles, ensuring users see only authorized information.

9. Optimize Model Size and Performance

Remove unnecessary columns and rows before loading data.

Aggregate data where possible to reduce granularity.

Avoid large text fields and use measures efficiently.

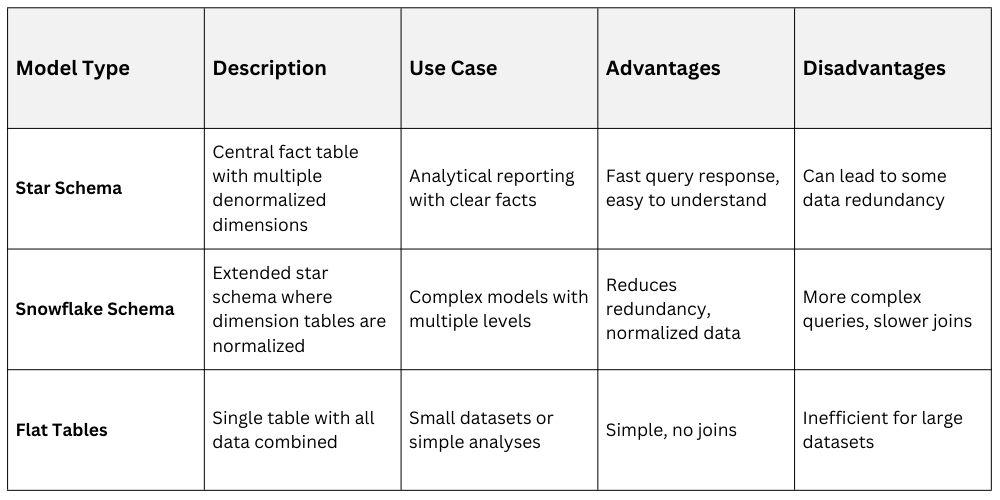

Common Data Model Types
