Power Query Editor is a powerful data connection and transformation tool integrated within Power BI Desktop that enables users to discover, connect, combine, and refine data from a wide variety of sources.
It serves as a foundational element in the data preparation process, often referred to as ETL (Extract, Transform, Load), allowing business intelligence professionals to shape raw data into a clean, structured format ready for analysis and visualization.
Power Query's user-friendly interface, combined with its robust functionality, makes it accessible to both novice and advanced users.
At its core, Power Query uses a series of applied steps that record every transformation action, ensuring the process is repeatable and transparent.
Basic operations include importing data, filtering rows, removing columns, and transforming data types, while advanced transformations support complex scenarios such as merging tables, unpivoting columns, grouping data, and using custom M language scripts.
This flexibility enables enhanced data quality and efficiency, empowering users to handle diverse data challenges without needing extensive coding expertise.
Power Query Editor Basics
Power Query Editor enables users to prepare data from multiple sources before modeling and reporting. The list below outlines the essential tools used for transforming and organizing data effectively.
1. Connecting to Data Sources: Import data from Excel, CSV, databases, web, and more.
2. Navigator Pane: Select tables or sheets to load and preview.
3. Applied Steps Pane: Lists sequential transformation steps that can be reviewed or modified.
4. Data Preview: Visual feedback of data after each transformation step.
5. Basic Transformations:
Removing or keeping specific columns
Filtering rows based on criteria
Changing data types (text, number, date)
Renaming columns for clarity
Sorting data
6. Column and Row Operations:
Adding custom columns with formulas
Splitting or merging columns
Removing duplicates
Advanced Transformations
The main advanced transformation features extend Power Query beyond basic data cleaning. The list below highlights powerful methods used to reshape, summarize, and dynamically manage data.
1. Merging and Appending Queries: It enable flexible data consolidation in Power BI. Tables can be combined horizontally using merges based on key columns or stacked vertically through append queries to unify multiple datasets.
2. Pivoting and Unpivoting: Pivoting and unpivoting help reshape data for analysis and reporting. Pivot transforms rows into columns for easier summarization, while unpivot converts columns into rows to normalize and standardize data structures.
3. Grouping and Aggregations: Allow data to be summarized efficiently by organizing rows based on one or more columns. Aggregate functions such as sum, average, count, minimum, and maximum can then be applied within each group to generate meaningful insights.
4. Conditional Columns: Create new columns based on conditional logic (if-then-else) without coding.
5. Parameterization: Use parameters for dynamic filtering or changing source paths during refreshes.
6. Error Handling: Detect and manage errors or missing values for cleaner datasets.
7. Using M Language: Write or modify advanced queries using M language scripts to extend Power Query capabilities.

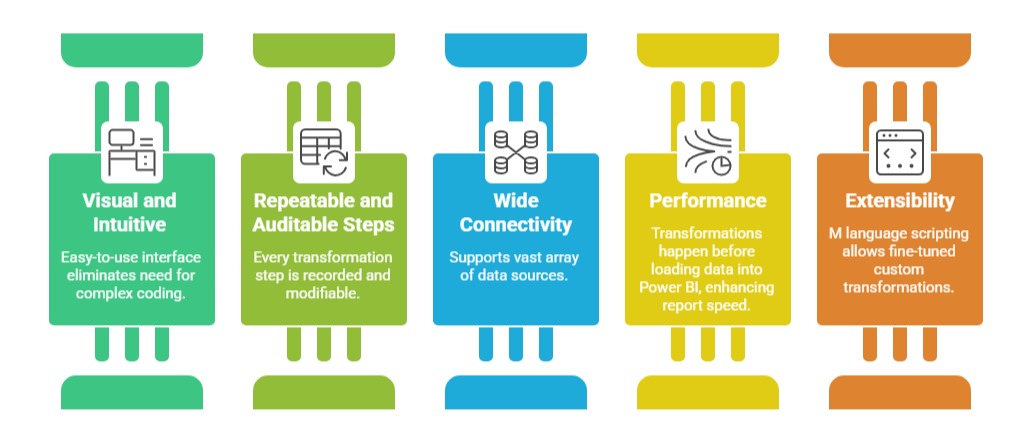

Benefits of Power Query Editor
1. Visual and Intuitive: Easy-to-use interface eliminates need for complex coding.
2. Repeatable and Auditable Steps: Every transformation step is recorded and modifiable.
3. Wide Connectivity: Supports vast array of data sources.
4. Performance: Transformations happen before loading data into Power BI, enhancing report speed.
5. Extensibility: M language scripting allows fine-tuned custom transformations.
