Message-Driven Architectures

Message-driven architecture is an architectural pattern where components communicate by exchanging messages asynchronously rather than invoking services or methods directly.

This approach decouples system components, improves scalability, reliability, and facilitates distributed systems or microservices. Messaging enables applications to process tasks independently, handle variable loads gracefully, and maintain high availability even under failure conditions.

AWS offers various services, such as Amazon Simple Queue Service (SQS) and Amazon Simple Notification Service (SNS), to implement robust message-driven systems in the cloud.

Concepts of Message-Driven Architecture

1. Asynchronous Communication: Components send messages and continue processing without waiting for an immediate response, increasing system responsiveness.

2. Decoupling: Senders and receivers operate independently, reducing direct dependencies and enhancing system flexibility.

3. Message Queues: Used to buffer messages until consumers can process them, smoothing spikes in workloads.

4. Publish/Subscribe Pattern: Allows messages to be broadcast to multiple subscribers interested in particular event types.

5. Event-Driven Processing: Execution of business logic triggered by message arrival or events.

AWS Messaging Services

Amazon provides managed messaging services that support message-driven architecture patterns:

• Amazon Simple Queue Service (SQS): A scalable, fully managed message queuing service for decoupling and scaling microservices, distributed systems, and serverless applications.

Features include:

1. Standard Queues: Provide high throughput, at-least-once delivery, and best-effort ordering.

2. FIFO (First-In, First-Out) Queues: Guarantee exactly-once delivery and ordered processing for critical workloads.

3. Dead-Letter Queues (DLQ): Capture messages that could not be processed successfully.

• Amazon Simple Notification Service (SNS): A fully managed pub/sub messaging service that allows publishers to send messages to multiple subscribers via different protocols: HTTP/S, email, SMS, Lambda functions, and SQS queues.

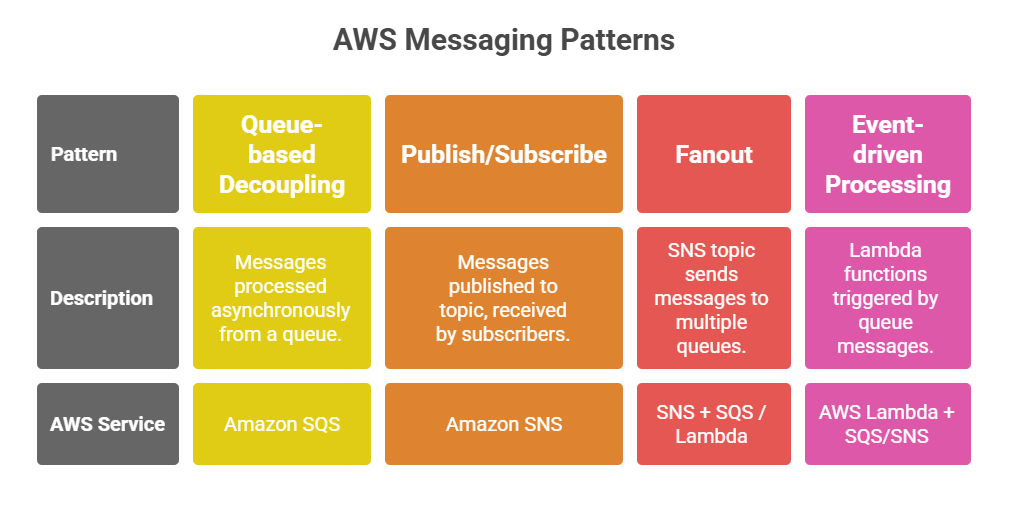

Key Messaging Patterns in AWS

( Table Image )

Advantages of Message-Driven Architectures

Message-driven design enhances system behavior under dynamic workloads and integrates seamlessly with diverse services. The advantages outlined below demonstrate their impact on scalability, flexibility, and resilience:

• Improved scalability by distributing workloads asynchronously.
• Enhanced fault tolerance due to message persistence and retries.
• Loose coupling promotes independent development and deployment.
• Flexibility of integrating heterogeneous systems and languages.
• Simplified batch processing and rate adaptation.

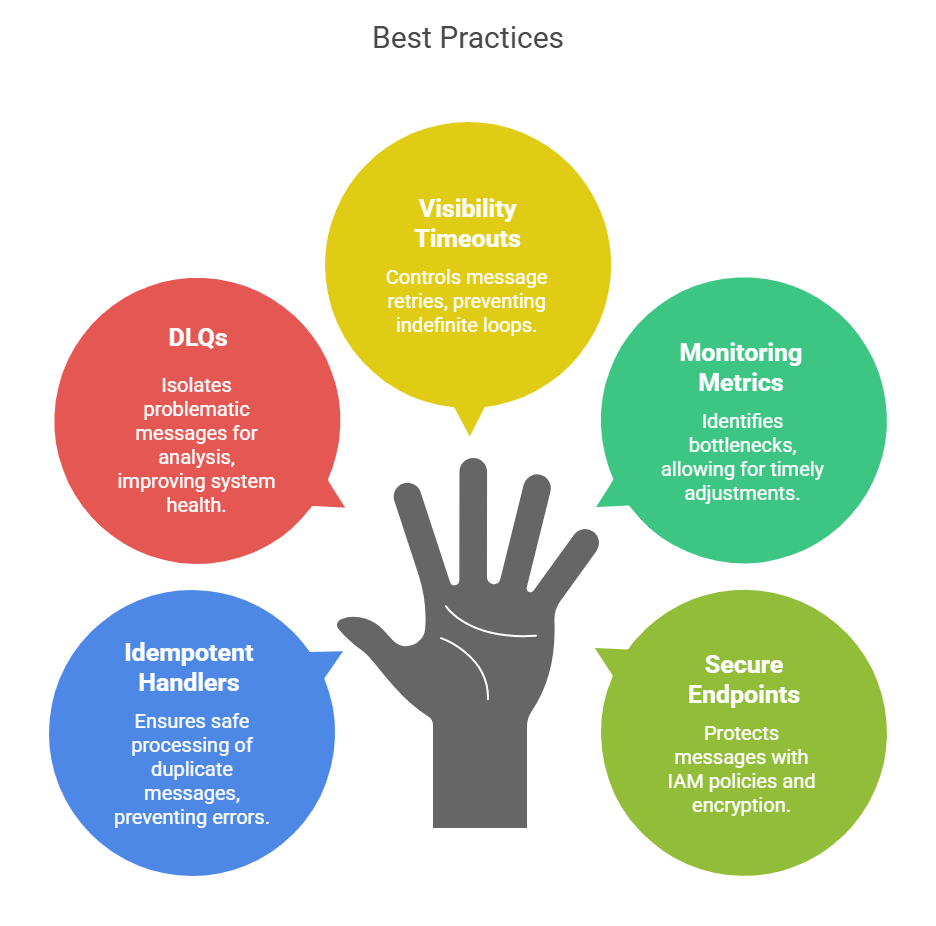

Best Practices ( Image)

• Design idempotent message handlers to safely handle duplicate deliveries.
• Use DLQs to isolate and analyze problematic messages.
• Implement message visibility timeouts for controlled processing retries.
• Monitor queue length and processing metrics to identify bottlenecks.
• Secure messaging endpoints with IAM policies and encryption.

Applications of Message-Driven Architecture

1. Microservices communication with asynchronous workflows.

2. Decoupled event processing pipelines.

3. Notification and alert distribution systems.

4. Distributed transaction and saga pattern implementations.

5. Real-time data processing, such as streaming analytics.
