Advanced Scipy Topics

Advanced SciPy topics focus on using the library’s specialized modules to handle complex scientific and analytical tasks. This includes advanced optimization methods, numerical integration of challenging functions, solving differential equations, and performing high-level signal and image processing. It also covers statistical modeling, interpolation, and working with large-scale linear algebra problems. Overall, these advanced features enable powerful, efficient, and precise scientific computations for real-world applications.

1.1 SciPy Constants

1. The scipy.constants submodule provides a large collection of predefined physical constants used in physics, engineering, mathematics, chemistry, and astronomy. These constants are stored with high precision, making them reliable for scientific computations.



2. This module includes commonly used constants such as the gravitational acceleration, speed of light, pi value, Planck constant, Avogadro number, Boltzmann constant, and many more. Each constant is available as a simple Python variable, making it easy to use in formulas without manually typing values.






Example of using gravitational acceleration g:

from scipy.constants import g

g   # Earth's gravitational acceleration in m/s²

Example of using the mathematical constant pi:

from scipy.constants import pi

pi   # Precise value of π

Example of using the speed of light c:

from scipy.constants import c

c   # Speed of light in vacuum (m/s)

Example of using Planck's constant:

from scipy.constants import Planck

Planck   # Planck constant in J·s

The constants module also provides functions for unit conversion, which eliminates manual conversion calculations and reduces chances of errors in scientific computations.

Example: Conversion of temperature between Celsius, Kelvin, and Fahrenheit using convert_temperature():

from scipy.constants import convert_temperature

convert_temperature(100, 'Celsius', 'Kelvin')   # Converts 100°C to Kelvin

These constants and conversion tools are essential when performing physics simulations, engineering calculations, or mathematical modeling where unit accuracy is important.

1.2 Types of Integration

Types of integration in SciPy refer to different numerical methods used to evaluate definite integrals and solve integration problems. SciPy provides functions for single, double, and triple integration, along with specialized techniques for handling improper integrals. It also supports integrating user-defined functions and arrays with tools like quad(), dblquad(), and tplquad(). Overall, these integration methods enable accurate and efficient computation of a wide range of mathematical integrals.

1. The scipy.integrate module provides numerical methods for evaluating definite integrals, multivariate integrals, improper integrals, and systems of ordinary differential equations.



2. It is used extensively in physics, engineering, finance, statistics, computational mathematics, and data modeling to approximate integrals that cannot be solved analytically.



3. The integration functions in SciPy use adaptive numerical algorithms that automatically adjust step sizes and computation parameters to achieve high accuracy.



4. These integration tools are built on robust FORTRAN libraries such as QUADPACK and high-performance numerical routines, ensuring fast and stable results for real-world scientific problems.



5. SciPy’s integration methods support a wide range of mathematical expressions, from simple polynomial functions to complex multivariable models and vector-valued functions.



1.3 Single Integral: quad()

The quad() function in SciPy is used to compute single definite integrals numerically. It evaluates the integral of a given function over a specified interval with high accuracy using adaptive quadrature techniques. quad() also returns an estimate of the error, making it reliable for scientific computations. Overall, it provides a simple and powerful way to perform single-variable integration in SciPy.

1. The quad() function is the most commonly used integration tool in SciPy for computing definite integrals of single-variable functions over a closed interval.



2. It automatically uses an adaptive quadrature technique from the QUADPACK library, which adjusts evaluation points to minimize error.



3. The function returns two values: the numerical result of the integral and an estimate of the integration error.



4. quad() is suitable for smooth, continuous functions and can handle many improper integrals by integrating over infinite limits if required.



5. This function is widely used in mathematical modeling, physics problems, and probability calculations where integrals need precise numerical evaluation.



Example for evaluating ∫ x² dx from 0 to 3

from scipy.integrate import quad

quad(lambda x: x**2, 0, 3)

1.4 Double Integral: dblquad()

The dblquad() function in SciPy is used to compute double integrals over a two-dimensional region. It evaluates a function of two variables by integrating first with respect to one variable and then the other over specified limits. dblquad() automatically handles nested limits and provides both the integral value and an error estimate. Overall, it offers an efficient and accurate method for performing two-variable numerical integration.

1. The dblquad() function computes double integrals of functions with two variables over two ranges.



2. It evaluates integrals of the form ∫(a to b) ∫(g1(x) to g2(x)) f(x, y) dy dx, making it ideal for applications in physics, engineering, and probability where multiple variables are involved.



3. This function also uses adaptive numerical quadrature, ensuring accurate evaluation even for complex or non-linear integrand functions.



4. dblquad() supports dynamic range functions where the limits of the inner integral may depend on the outer variable.



5. It is commonly used in areas like heat distribution modeling, fluid flow calculations, and multivariate probability densities.



Example for evaluating ∫∫ (x + y) dx dy

from scipy.integrate import dblquad

dblquad(lambda x, y: x + y, 0, 1, lambda x: 0, lambda x: 2)

1.5 Multiple Integral: nquad()

The nquad() function in SciPy is used to compute multiple integrals over higher-dimensional regions. It allows integration of functions with any number of variables by specifying each variable’s limits in a flexible, nested format. nquad() automatically handles complex boundaries and returns both the result and an error estimate. Overall, it provides a powerful and general solution for performing multi-dimensional numerical integration.

1. The nquad() function evaluates integrals of functions with three or more variables and is the most general multivariate integration tool in SciPy.



2. It supports nested integrations across multiple dimensions such as 3D, 4D, or higher-dimensional integrals.



3. nquad() allows variable-dependent limits and accepts a list of ranges that define the integration bounds for each variable.



4. It uses recursive application of single-variable integration methods, making it powerful for high-dimensional numerical integration.



5. This function is frequently used in advanced scientific simulations, probability distribution analysis, electromagnetics, quantum mechanics, and multidimensional system modeling.



Example for integrating a 3D function

from scipy.integrate import nquad

nquad(lambda x, y, z: x*y*z, [[0,1],[0,2],[0,3]])

1.6 Solving ODEs – solve_ivp()

The solve_ivp() function in SciPy is used to solve ordinary differential equations (ODEs) numerically over a specified interval. It supports multiple solving methods, handles systems of equations, and allows setting step sizes, tolerances, and event detection. By passing a function that defines the ODE and initial conditions, solve_ivp() computes the solution efficiently. Overall, it provides a flexible and powerful tool for solving a wide range of ODE problems in scientific computing.

1. The solve_ivp() function is SciPy’s primary tool for solving ordinary differential equation (ODE) initial value problems. It numerically approximates solutions of the form dy/dt = f(t, y) over a specified time interval.



2. Unlike basic integrators, solve_ivp() supports both simple single-equation problems and large systems of ODEs, making it highly versatile for scientific and engineering applications.



3. It uses modern numerical integration methods such as RK45 (Runge-Kutta), RK23, BDF (Backward Differentiation Formula), LSODA, and Radau, ensuring that both stiff and non-stiff equations can be solved efficiently.



4. The solver automatically adjusts step sizes, detects stiffness, manages error tolerances, and optimizes computation, providing stable and accurate results.



5. solve_ivp() accepts inputs such as the derivative function, time span, initial values, and additional control parameters like tolerances and maximum step size.



6. The function outputs a solution object containing time points, computed values, success status, and diagnostic information, which is useful for analysis, plotting, and further computation.



7. This solver is widely used in modeling population growth, chemical reactions, biological systems, physics simulations, control systems, and many dynamic processes where change over time must be solved numerically.



Example for solving ODE: dy/dt = -2y with y(0) = 1

from scipy.integrate import solve_ivp

solve_ivp(lambda t, y: -2*y, [0, 5], [1])

1.7 Optimization – scipy.optimize

The scipy.optimize module provides powerful tools for solving optimization problems, including finding minima, maxima, and roots of functions. It supports both unconstrained and constrained optimization, offering methods like gradient-based solvers, simplex algorithms, and global optimization techniques. The module can also fit curves and models to data using functions like curve_fit(). Overall, scipy.optimize offers a comprehensive and flexible set of tools for mathematical, scientific, and engineering optimization tasks.

Introduction to Optimization in SciPy

1. The scipy.optimize module provides numerical algorithms for solving mathematical optimization problems such as finding roots of equations, minimizing functions, and fitting models to data.



2. Optimization is essential in engineering design, machine learning, physics simulations, data modeling, and scientific research where optimal values or best-fit parameters are required.



3. The functions in this module use advanced numerical techniques such as gradient-based methods, quasi-Newton methods, trust-region methods, and nonlinear least squares algorithms.



4. SciPy’s optimization tools handle both simple scalar functions and large multivariable problems, offering flexibility for real-world scientific applications.



5. The module includes specialized solvers for root finding, global optimization, curve fitting, and constraint-based minimization, making it a complete optimization toolkit.



1.8 Root Finding

Root finding in SciPy allows you to compute values of variables where a mathematical function becomes zero using numerical methods. The scipy.optimize module provides efficient solvers like fsolve, root, bisect, brentq, and newton for handling both simple and complex equations. These methods work without requiring analytical solutions, making them useful for real-world scientific and engineering problems. SciPy’s root-finding tools are reliable, fast, and widely used for solving non-linear equations.

1.8.1 root() Function

The root() function in SciPy is a general-purpose tool used to find the zeros of a system of nonlinear equations. It supports multiple algorithms such as hybrid, LM, Broyden, and Krylov methods, making it suitable for both single and multi-variable problems. The function only requires defining the equation(s) whose root is needed, and SciPy handles the numerical solving internally. It is widely used because of its flexibility, robustness, and ability to solve complex equation systems efficiently.

1. The root() function is a general-purpose solver used for finding roots of linear or nonlinear equations and systems of equations.



2. It supports multiple solving methods like hybr, lm, and broyden, making it suitable for small and large systems.



3. Users provide an initial guess, and the algorithm iteratively adjusts the solution until the function approaches zero.



4. The function returns detailed information including solution vector, success status, number of iterations, and error messages for diagnostic purposes.



5. It is used in applications like electrical systems, mechanical models, chemical equilibria, and nonlinear mathematical equations.



Example

from scipy.optimize import root

root(lambda x: x**2 - 4, 1)

1.8.2 fsolve() Function

The fsolve() function in SciPy is used to find the roots of nonlinear equations by applying a numerical method based on the Powell hybrid algorithm. It is especially effective for solving systems of equations where an initial guess is provided, and the solver iteratively refines the solution. fsolve() is simple to use, requiring only a function definition and starting point to compute the root. It is widely used for engineering, mathematical modeling, and scientific computations involving complex equation solving.

1. The fsolve() function is a simpler root-finding method specifically designed for solving nonlinear equations or systems.



2. It is based on the MINPACK library and uses a modification of Newton's method for fast convergence.



3. The function requires a good initial guess because the algorithm is sensitive to starting values.



4. It is highly effective for engineering problems where determining equilibrium points or solving nonlinear relationships is essential.



5. fsolve() returns only the solution, making it easier to use but less informative compared to root().



Example

from scipy.optimize import fsolve

fsolve(lambda x: x**3 - 9*x + 3, 1)

1.8.3 Minimization – minimize() Function

The minimize() function in SciPy is used to find the minimum value of a scalar function by applying various optimization algorithms like BFGS, Nelder–Mead, or Conjugate Gradient. It works by iteratively adjusting variables to reach the point where the function achieves its lowest value. Users can choose methods, set constraints, and define bounds to control the optimization process. This function is widely used in machine learning, engineering design, curve fitting, and scientific research for solving real-world minimization problems.

1. The minimize() function is the primary tool in SciPy for minimizing scalar or multivariable functions.



2. It supports many optimization algorithms such as BFGS, Nelder-Mead, CG (Conjugate Gradient), Powell, and trust-region methods.



3. The function can handle both unconstrained and constrained optimization problems using additional parameters.



4. It is widely used in engineering design optimization, machine learning model tuning, and statistical parameter estimation.



5. minimize() returns a detailed result object containing the minimum value, location of minimum, iteration count, gradient information, and success flag.



Example

from scipy.optimize import minimize

minimize(lambda x: x**2 + 4*x + 5, 0)

1.8.4 Curve Fitting – curve_fit() Function

The curve_fit() function in SciPy is used to fit a custom mathematical model to observed data by estimating the best-fit parameters. It works by minimizing the difference between model predictions and actual data points using nonlinear least squares optimization. Users provide the model function and initial parameter guesses, and curve_fit() returns optimized parameter values. This function is widely used in statistics, machine learning, scientific experiments, and trend analysis for accurate curve modeling.

1. The curve_fit() function performs non-linear least squares fitting, where a mathematical model is fitted to observed data.



2. It adjusts the parameters of a function so that the predicted values match the experimental or real dataset as closely as possible.



3. Internally, curve_fit() uses the Levenberg–Marquardt algorithm, which is efficient for solving non-linear least squares problems.



4. It is commonly used in scientific experiments, data analysis, statistics, biology, economics, and any domain where data patterns must be modeled.



5. The function returns best-fit parameters and the covariance matrix, allowing users to analyze accuracy and error in the fitted model.



1.8.5 Example: Curve Fitting

Problem: Fit the data to a quadratic function y = ax² + bx + c

1. A dataset of x and y values is given, and the goal is to find parameters a, b, and c that best match the data.



2. curve_fit() will optimize the function parameters to reduce the error between the predicted curve and the real data.



3. This demonstrates how SciPy can be used for modeling relationships, predicting trends, and analyzing scientific measurements.



Code Example

import numpy as np

from scipy.optimize import curve_fit

def model(x, a, b, c):

    return a*x**2 + b*x + c

x = np.array([0, 1, 2, 3, 4])

y = np.array([1, 3, 9, 15, 25])

params, covariance = curve_fit(model, x, y)

params

2.1 Linear Algebra – scipy.linalg

The scipy.linalg module provides advanced linear algebra tools built on optimized LAPACK and BLAS libraries, offering faster and more reliable operations than NumPy’s basic linalg functions. It supports solving systems of equations, computing matrix factorizations, and performing decompositions like LU, QR, and SVD. The module also includes functions for matrix inversion, eigenvalue computation, and handling specialized matrix types. Overall, scipy.linalg is essential for scientific computing, simulations, optimization, and numerical analysis requiring high-performance linear algebra.

2.1.1 Introduction to SciPy Linear Algebra

1. The scipy.linalg module provides advanced linear algebra routines that extend and enhance NumPy’s basic linear algebra features.



2. SciPy’s linear algebra functions are built on optimized low-level libraries such as BLAS and LAPACK, allowing high-performance computations for large matrices and complex systems.



3. It includes tools for solving linear equations, computing determinants, performing matrix decompositions, and finding eigenvalues, singular values, and matrix inverses.



4. The functions in scipy.linalg are more numerically stable, efficient, and robust than similar functions in NumPy’s linalg module due to better algorithmic implementations and refined numerical precision.



5. This module is essential in scientific computing, machine learning, data analysis, signal processing, control systems, physics, and mathematical modeling where matrix operations form the foundation of computations.



2.1.2 Solving Linear Equations – solve()

1. The solve() function is used to find solutions to systems of linear equations of the form Ax = b, where A is a matrix and b is a vector or matrix.



2. It uses LAPACK routines that ensure fast and accurate solutions even for large or complex linear systems.



3. solve() automatically checks whether the matrix is square and selects the most efficient algorithm based on matrix properties.



4. It is widely used in engineering simulations, linear models, circuit analysis, and any problem where a unique solution to a system is required.



5. This function is more stable and precise than manually computing the inverse and multiplying it with b.



Example

from scipy.linalg import solve

solve([[3, 1], [1, 2]], [9, 8])

2.1.3 Determinant of a Matrix – det()

1. The det() function computes the determinant of a square matrix, which is an important scalar value representing matrix characteristics such as invertibility.



2. A determinant value of zero indicates that the matrix is singular and does not have an inverse.



3. Determinants are used in solving linear systems, analyzing matrix rank, studying geometric transformations, and evaluating system stability.



4. SciPy uses optimized algorithms that reduce numerical errors commonly found in large matrix determinant computations.



5. This function is frequently used in theoretical mathematics, physics, and system analysis.



Example

from scipy.linalg import det

det([[4, 2], [3, 1]])

2.1.4 Matrix Inverse – inv()

1. The inv() function computes the inverse of a square matrix A such that A⁻¹A = I, where I is the identity matrix.



2. Inverse matrices are essential in solving systems, transforming coordinate spaces, and performing advanced algebraic computations.



3. SciPy’s implementation is highly optimized and avoids unnecessary numerical instability through smart decomposition techniques.



4. It is generally preferred to use solve() instead of explicitly computing inverses in performance-sensitive applications, but inv() is still valuable for theoretical and symbolic operations.



5. This function is used in control theory, optimization problems, and multi-variable statistical models.



Example

from scipy.linalg import inv

inv([[1, 2], [3, 4]])

2.1.5 Eigenvalues and Eigenvectors – eig()

1. The eig() function computes eigenvalues and eigenvectors of a square matrix A, solving the relation Av = λv.



2. Eigenvalues represent fundamental properties of a system such as natural frequencies, stability characteristics, and transformation behaviors.



3. Eigenvectors reveal direction vectors that remain invariant under matrix transformation.



4. SciPy uses LAPACK routines to ensure accurate results even for complex matrices, making it suitable for physics simulations, vibration analysis, PCA (Principal Component Analysis), and differential equation solutions.



5. The function returns both eigenvalues and corresponding eigenvectors for detailed system analysis.



Example

from scipy.linalg import eig

eig([[4, -2], [1, 1]])

2.1.6 Singular Value Decomposition – svd()

1. The svd() function performs Singular Value Decomposition, which decomposes a matrix A into UΣVᵀ, revealing fundamental matrix properties.



2. SVD is one of the most important tools in numerical linear algebra, used in data compression, noise reduction, dimensionality reduction, and solving ill-conditioned systems.



3. It produces singular values that represent the strength or significance of each dimension in the matrix.



4. SciPy’s SVD implementation is tuned for speed and reliability, capable of handling large datasets efficiently.



5. SVD is used in machine learning (PCA, recommender systems), natural language processing (Latent Semantic Analysis), and image processing.



Example

from scipy.linalg import svd

svd([[1, 2], [3, 4]])

3. Interpolation – scipy.interpolate

SciPy’s interpolation module provides mathematical tools to estimate intermediate values between discrete data points. Interpolation is essential in scientific computing, simulation, machine learning preprocessing, image processing, signal processing, and numerical analysis. The module supports one-dimensional, multi-dimensional, spline-based, and radial-basis-function interpolation methods, providing high accuracy and smooth approximations of data.

SciPy interpolation methods work by constructing a continuous function that passes through or near the given dataset. This continuous function can then be used to estimate unknown values, smooth noisy data, or resample data at new points. The module supports both linear and non-linear interpolation schemes and offers specialized classes for spline interpolation and piecewise polynomials.

3. 1 Core Functions of scipy.interpolate

The scipy.interpolate module provides tools to construct new data points within the range of existing data using various interpolation techniques. It includes core functions like interp1d for 1D interpolation, interp2d for 2D surfaces, and UnivariateSpline or Rbf for smooth spline and radial basis interpolation. These functions help convert scattered or discrete data into continuous forms for better analysis and visualization. Overall, scipy.interpolate is essential for smoothing data, filling gaps, and modeling continuous curves or surfaces.

3.1.1 interp1d – One-Dimensional Interpolation

The interp1d class creates an interpolation function from one-dimensional data. It accepts x-coordinates and y-values and returns a callable interpolation object that can generate new values for any intermediate points.

Important points

1. interp1d supports multiple interpolation types including linear, nearest, quadratic, and cubic.



2. It is used when the data is strictly one-dimensional and needs interpolation at new x-positions.



3. The function returns a continuous function, not just results, allowing repeated evaluation at any number of points.



Example of 1D interpolation

from scipy.interpolate import interp1d

f = interp1d([0, 1, 2], [0, 2, 4], kind='linear')

f(1.5)

3.1.2 interp2d – Two-Dimensional Interpolation

The interp2d function performs interpolation over a 2D grid of x and y values. It is commonly used in image processing, heat maps, contour plots, and surface fitting.

Important points

1. It constructs a function that can estimate values on a 2D plane.



2. It supports linear, cubic, and quintic interpolations.



3. It is suitable for interpolating evenly spaced grid data.



Example

from scipy.interpolate import interp2d

f = interp2d([0,1], [0,1], [[0,1],[1,2]], kind='linear')

f(0.5, 0.5)

3.1.3 Rbf – Radial Basis Function Interpolation

The Rbf class implements multidimensional interpolation using radial basis functions. It is flexible and does not require grid-based input, making it ideal for irregular or scattered data.

Important points

1. It supports various radial functions such as multiquadric, gaussian, linear, and inverse.



2. It can handle multi-dimensional scattered data, unlike interp1d or interp2d.



3. It produces smooth surfaces even when the data points are not structured.



Example

from scipy.interpolate import Rbf

rbf = Rbf([0,1,2], [0,1,2], [0,1,4])

rbf(1.5, 1.5)

3.1.4 UnivariateSpline – Smooth 1D Spline Interpolation

The UnivariateSpline class fits a smooth spline function to one-dimensional data. Unlike interp1d, it allows smoothing of noisy data using a smoothing factor.

Important points

1. It fits a spline curve that may not pass exactly through every point, allowing noise reduction.



2. It supports controlling knots, smoothing factor, and degree of spline.



3. It is ideal for scientific datasets with minor measurement errors.



Example

from scipy.interpolate import UnivariateSpline

import numpy as np

x = np.linspace(0, 10, 10)

y = np.sin(x)

spline = UnivariateSpline(x, y)

spline(5)

3.1.5 BivariateSpline – Smooth 2D Spline Interpolation

The BivariateSpline class is the 2D version of spline fitting. It constructs a smooth surface that approximates 2D data, often used in geospatial modeling, elevation maps, and surface fitting.

Important points

1. It supports fitting splines to irregular 2D data.



2. It provides smooth surface estimation rather than exact interpolation.



3. It is suitable for terrain modeling, heat distribution surfaces, and physical simulations.



3.1.6 Piecewise Polynomials

SciPy contains classes and functions for constructing continuous functions made of multiple polynomial segments. These segments guarantee smooth transitions at boundaries.

Important points

1. Piecewise polynomials divide the domain into intervals and fit separate polynomials in each interval.



2. They ensure continuity and smoothness across boundaries using conditions like first derivative and second derivative continuity.



3. They are useful in modeling curves with sharp bends or local variations.



Example

from scipy.interpolate import PPoly

import numpy as np

c = np.array([[1, 2], [3, 4]])     # coefficients

x = np.array([0, 1, 2])            # breakpoints

pp = PPoly(c, x)

pp(1.5)

4. Image Processing – scipy.ndimage

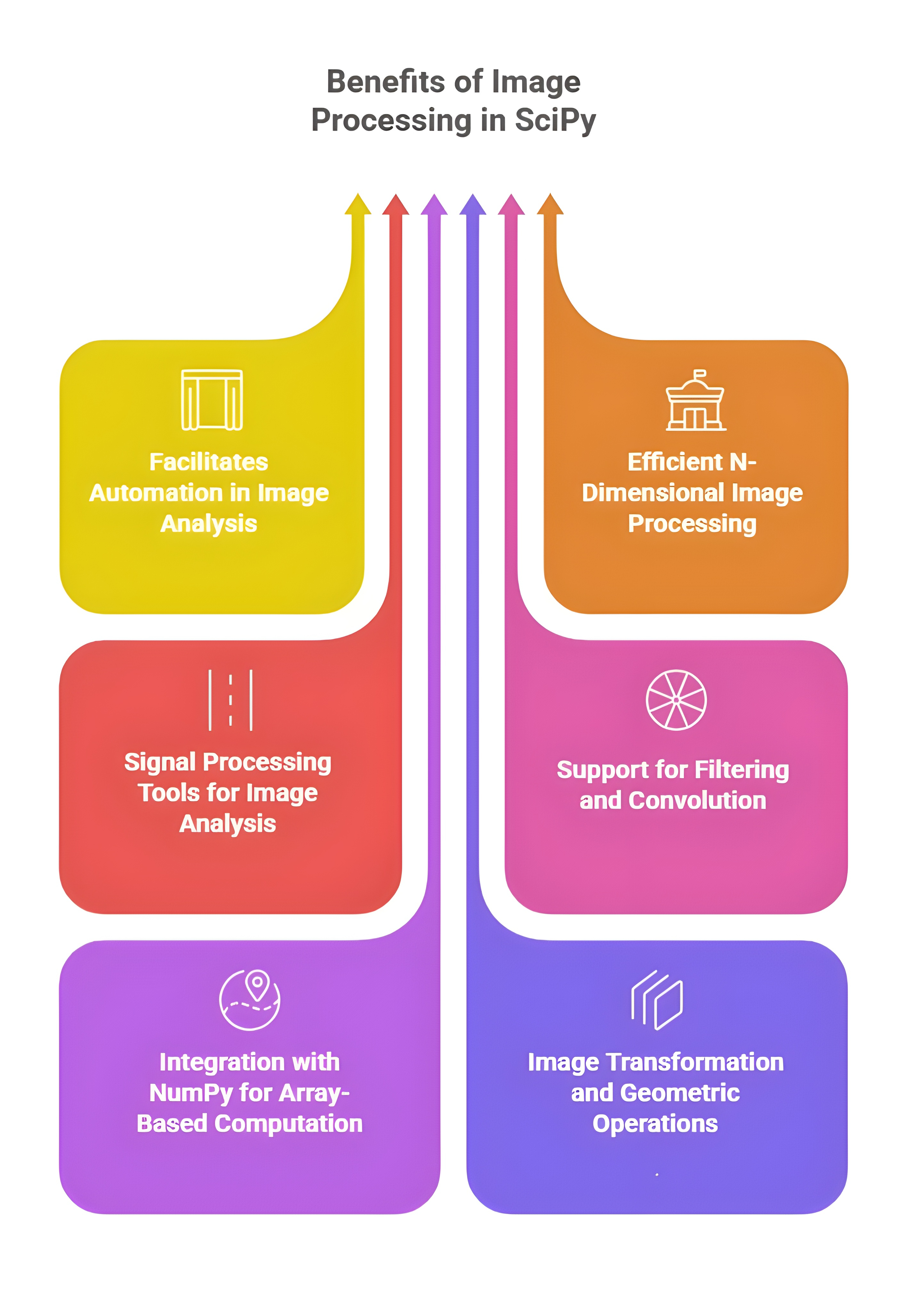

The scipy.ndimage module provides a comprehensive set of tools for multi-dimensional image processing. It supports filtering, edge detection, morphological transformations, geometric operations, object labeling, and measurement tasks. The name ndimage stands for n-dimensional image, meaning it can process 1D, 2D, 3D, and higher-dimensional image data.

The module is widely used in computer vision, biomedical imaging, machine learning preprocessing, scientific visualization, and image-based measurements. All operations work on NumPy arrays, making it efficient and easy to integrate with other scientific libraries.

4.1 Image Filtering

1. Image filtering refers to the process of modifying pixel intensities to enhance certain aspects of an image, such as removing noise, smoothing textures, sharpening edges, or extracting specific features. SciPy provides several convolution-based and neighborhood-based filters that act over local pixel regions to produce a new processed image.



2. Filtering is essential in computer vision, medical imaging, satellite imaging, and digital photography where noise removal, feature extraction, or preprocessing must be done before further analysis.



4.1.1 Gaussian Filter

3. The Gaussian filter applies a smoothing technique using a Gaussian (bell-shaped) kernel. This kernel gives higher weight to central pixels and lower weight to distant ones. As a result, the filter smooths the image while preserving large structures.



4. The Gaussian filter reduces high-frequency components such as sharp noise and unwanted grain, making it ideal for preprocessing in edge detection, segmentation, and image recognition tasks.



Example usage:

from scipy.ndimage import gaussian_filter

gaussian_filter(image, sigma=2)

5.


6. A higher sigma value produces stronger blurring, while a lower value preserves more details.



4.1.2 Median Filter

7. The median filter replaces each pixel with the median value of the surrounding neighborhood. Instead of averaging values, it selects the central tendency, making it effective for images affected by salt-and-pepper noise, where random pixels become extremely bright or dark.



8. Because the median filter does not blur edges like Gaussian smoothing, it is commonly used for medical images, CT scans, fingerprint images, and any application where edges must remain sharp.



Example usage:

from scipy.ndimage import median_filter

median_filter(image, size=3)

9.


10. Larger neighborhood sizes lead to stronger denoising.






4.1.3 Uniform Filter

11. The uniform filter applies a simple average over the neighborhood of each pixel. All pixels in the neighborhood have equal weight, making the smoothing effect uniform across the entire region.



12. While it is faster and computationally cheaper than Gaussian filtering, it is not as precise and may oversmooth detailed textures.



13. Example usage:



from scipy.ndimage import uniform_filter

uniform_filter(image, size=3)

4.2 Edge Detection

14. Edge detection identifies boundaries within an image by calculating intensity differences. It highlights structural transitions such as object edges, corners, boundaries, and outlines. SciPy uses classical gradient-based filters such as Sobel and Prewitt to detect these changes.



5. Statistics & Probability – scipy.stats

The scipy.stats module is one of the most extensive statistical libraries in Python. It provides tools for descriptive statistics, probability distributions, statistical tests, random sampling, and advanced probability calculations. The module includes more than 100 continuous and discrete probability distributions and implements classical hypothesis testing methods used in data analysis, machine learning, research, and scientific computing.

SciPy’s statistical functions are optimized for performance and numerical accuracy, making them suitable for real-world datasets, simulations, A/B testing, predictive modeling, and statistical research.

5.1 Probability Distributions

SciPy provides a large collection of probability distributions divided into continuous and discrete categories. Each distribution supports PDF, CDF, quantiles, random sampling, and fitting to data.

5.1.1Continuous Distributions

Continuous distributions deal with variables that can take any real value within a range.

Important points

1. SciPy includes popular distributions such as Normal, Exponential, Uniform, Gamma, Beta, Chi-square, Lognormal, Weibull, and more.



2. Every distribution supports functions such as PDF (probability density), CDF (cumulative probability), mean, variance, median, and entropy.



3. They are widely used in machine learning models, simulations, reliability analysis, queuing systems, financial modeling, and natural phenomena modeling.



Example of normal distribution
from scipy.stats import norm
norm.pdf(0)
norm.cdf(1.96)

6. Major Subpackages of SciPy

SciPy is organized into major subpackages that focus on different scientific computing needs, such as scipy.optimize for optimization, scipy.integrate for integration and ODEs, and scipy.linalg for advanced linear algebra. It also includes scipy.interpolate for interpolation, scipy.stats for statistical analysis, and scipy.fft for fast Fourier transforms. Additional modules like scipy.signal, scipy.spatial, and scipy.ndimage support signal processing, spatial algorithms, and image processing. Together, these subpackages make SciPy a comprehensive toolkit for mathematical, engineering, and data-science computations.

6.2 scipy.constants

1. The scipy.constants module contains a comprehensive library of globally accepted scientific and mathematical constants used in physics, chemistry, engineering, and astronomy.



2. These constants include fundamental values such as physical constants, unit conversion factors, and universal measurements that allow precise scientific computations.



3. The module ensures that scientific calculations across various fields remain accurate, standardized, and reproducible.



6.2.2 Core Features

1. The module includes constants like the speed of light (c), Planck’s constant (h), elementary charge (e), gravitational constant (G), and Avogadro’s number (NA).



2. It provides an extensive unit conversion system for converting quantities such as mass, pressure, energy, temperature, and angles between various units.



3. It enables researchers, engineers, and scientists to perform calculations without manually defining constants, preventing errors and maintaining consistency.



6.3 scipy.fft

1. The scipy.fft module provides a modern, fast, and numerically stable implementation of the Fast Fourier Transform (FFT).



2. FFT is essential in signal processing, frequency-domain analysis, audio engineering, vibration analysis, and time-series transformations.



3. The module improves upon previous versions by offering multi-threading, optimized algorithms, and better support for multidimensional data.



6.3.2 Main Components

1. The module supports 1D, 2D, and ND Fourier transforms, enabling frequency analysis of complex signals, images, and volumetric datasets.



2. It offers functions for computing forward and inverse FFT, discrete cosine transforms, and real FFTs for signals with specific structural properties.



3. It is widely used for filtering signals, compressing data, extracting harmonics, and analyzing periodic components.



6.4 scipy.integrate

1. The scipy.integrate module provides advanced numerical integration tools and differential equation solvers.



2. Integration refers to computing area under curves or cumulative values, while ODE solvers calculate system behavior over time.



3. These tools are essential in physics, engineering, calculus, simulations, control theory, and mathematical modeling.



6.4.2 Main Features

1. Functions such as quad(), dblquad(), nquad() perform single, double, and multidimensional integration, allowing evaluation of real mathematical integrals.



2. ODE solvers like solve_ivp() and odeint() allow solving complex time-dependent systems such as population models, chemical reactions, and physical dynamics.



3. The module makes it possible to translate mathematical formulas into accurate numerical results.



6.5 scipy.interpolate

1. The scipy.interpolate module provides interpolation techniques to estimate unknown values between measured data points.



2. Interpolation is essential for smoothing curves, reconstructing signals, filling missing data, and creating continuous mathematical representations of discrete samples.



3. It is used widely in computer graphics, machine learning, numerical analysis, and scientific computing.



6.5.2 Major Components

1. It supports 1D, 2D, and multidimensional interpolation using functions such as interp1d, interp2d, griddata, and Rbf.



2. It includes polynomial interpolation, spline interpolation, piecewise functions, cubic splines, and B-splines for smooth approximations.



3. It enables tasks such as curve fitting, gradient estimation, terrain modeling, and image warping.



6.6 scipy.io

1. The scipy.io module is responsible for input/output operations related to scientific data formats.



2. It allows users to read, write, and convert a variety of structured and unstructured data files commonly used in numerical and engineering environments.



3. This makes SciPy highly compatible with other software ecosystems and data exchange pipelines.



6.6.2 Core Features

1. It supports reading and writing MATLAB .mat files, which are heavily used in engineering, academic research, and data analysis.



2. It handles formats such as WAV audio files, Fortran binary data, netCDF files, and matrix market files.



3. It includes utilities for serialization, data loading, and conversion between formats.



6.7 scipy.linalg

1. The scipy.linalg module extends NumPy’s linear algebra capabilities with more efficient, robust, and optimized routines.



2. It is built on BLAS and LAPACK libraries, offering high-performance matrix operations required in scientific computing.



3. It supports advanced decomposition, solving, and transformation functions not available in basic NumPy.



6.7.2 Major Features

1. Supports matrix decompositions such as LU, QR, Cholesky, SVD, and eigenvalue decompositions.



2. Provides tools for solving linear systems, computing matrix inverses, and evaluating determinants.



3. Essential in machine learning algorithms, physics simulations, structural engineering, control systems, and numerical optimization.



6.8 scipy.ndimage

1. The scipy.ndimage module offers n-dimensional image processing capabilities.



2. It supports filtering, geometric transformations, morphological operations, segmentation, and measurement functions.



3. It is widely used in biomedical imaging, computer vision, quality inspection, satellites, and scientific visualization.



6.8.2 Features

1. Includes Gaussian, median, uniform filters, edge detection, and smoothing operations.



2. Provides functions for rotating, zooming, shifting, and warping images.



3. Offers tools for labeling connected components, extracting measurements, and performing binary morphology.



6.9 scipy.optimize

1. The scipy.optimize module contains mathematical optimization algorithms used to minimize error, maximize efficiency, or find roots of equations.



2. Optimization is crucial in machine learning model fitting, parameter tuning, engineering design problems, financial modeling, and statistical inference.



6.9.2 Core Capabilities

1. Provides functions like minimize(), least_squares(), curve_fit(), and fsolve() for solving equations and performing optimization.



2. Supports constrained and unconstrained optimization, gradient-based and gradient-free methods.



3. Enables curve fitting, regression modeling, and calibration of mathematical functions.



6.10 scipy.signal

The scipy.signal subpackage in SciPy provides tools for signal processing, including filtering, convolution, spectral analysis, and Fourier transforms. It supports designing and applying digital filters, detecting peaks, and analyzing time-series or frequency-domain data. These functions help process, clean, and interpret signals in various applications. Overall, scipy.signal is essential for engineering, communications, audio, and scientific data analysis involving signal manipulation.

6.10.2 Key Features

1. Supports FIR and IIR digital filter design, convolution operations, and Fourier-based filtering.



2. Includes spectrogram generation, wavelet transforms, deconvolution, and peak detection.



3. Used in audio processing, EEG/ECG analysis, communications, radar signals, IoT devices, and vibration monitoring.






6.11 scipy.sparse

The scipy.sparse subpackage in SciPy provides tools for efficiently storing and manipulating large, sparse matrices where most elements are zero. It includes various sparse matrix formats like CSR, CSC, and COO, along with functions for arithmetic operations, matrix factorizations, and linear system solving. Using sparse representations significantly reduces memory usage and computation time for large datasets. Overall, scipy.sparse is essential for scientific computing, graph algorithms, and large-scale simulations involving sparse data.

6.11.2 Main Features

1. Supports sparse matrix formats such as CSR, CSC, COO, DIA, and BSR.



2. Provides functions for sparse matrix multiplication, decomposition, solvers, and conversions between formats.



3. Essential in graph algorithms, recommendation systems, finite element methods, and large-scale ML tasks.



6.12 scipy.spatial

The scipy.spatial subpackage in SciPy provides tools for spatial data structures and computational geometry. It includes functions for calculating distances, nearest neighbors, convex hulls, Voronoi diagrams, and Delaunay triangulations. These tools help efficiently analyze and process geometric and multi-dimensional data. Overall, scipy.spatial is widely used in fields like computer graphics, geographic information systems, robotics, and scientific simulations.

6.12.2 Major Components

1. Supports KD-tree and cKDTree implementations for fast nearest-neighbor searching.



2. Includes Delaunay triangulation, Voronoi diagrams, and convex hull algorithms.



3. Provides distance metrics, pairwise distances, clustering geometry, and spatial partitioning.



6.13 scipy.special

The scipy.special subpackage in SciPy provides a wide collection of special mathematical functions that go beyond standard arithmetic, such as gamma, beta, Bessel, and elliptic functions. These functions are optimized for performance and numerical accuracy, making them suitable for scientific and engineering applications. scipy.special also includes error functions, orthogonal polynomials, and combinatorial functions. Overall, it is essential for advanced mathematical computations, physics simulations, and engineering problem-solving.

7. Internal Components of SciPy

The internal components of SciPy consist of modular subpackages and core computational routines that provide specialized functionality for scientific computing. These include modules for optimization, integration, interpolation, linear algebra, statistics, signal processing, and sparse data handling. SciPy relies on optimized libraries like BLAS and LAPACK for high-performance numerical computations. Overall, its internal structure ensures flexibility, efficiency, and reliability for a wide range of mathematical and engineering tasks.

8. Input/Output

Input and output in SciPy involve reading from and writing to various data formats, enabling smooth interaction with external datasets. SciPy provides functions to load and save arrays, matrices, and numerical data using formats like text files, CSV, and MATLAB .mat files. It also supports integration with NumPy’s I/O capabilities for efficient data handling. Overall, SciPy’s I/O functions facilitate easy data exchange and storage for scientific and engineering computations.

8.1 Definition of scipy.io

The scipy.io module provides functions for reading and writing a variety of scientific data formats. It acts as an interface between Python and external file formats commonly used in scientific and engineering domains. This module enables seamless data transfer between MATLAB, Fortran programs, NetCDF climate datasets, Matrix Market sparse matrices, and many other scientific tools. Because SciPy is widely used in numerical computation, the ability to import and export such data formats is essential for research reproducibility, automation, and interoperability across platforms.

8.2 Importance of Input/Output Handling

Scientific workflows often combine several tools and languages. MATLAB is used for engineering computations, Fortran for simulations, NetCDF for climate and atmospheric data, and Matrix Market for sparse matrix benchmarks. The scipy.io module makes Python compatible with all of these ecosystems. By supporting precise reading and writing of structured data formats, SciPy ensures that numerical values, metadata, sparse structures, and multidimensional datasets can be shared without information loss.

8.3 Input and Output in SciPy

SciPy provides extensive support for handling input and output operations, particularly through its scipy.io subpackage. This subpackage is specifically designed for reading and writing data in various formats used in scientific computing and numerical analysis. It allows seamless interaction with external data sources such as MATLAB files, text files, and other formats, enabling efficient data manipulation and storage within Python programs.

Loading and Saving MATLAB Files

SciPy has built-in support for reading from and writing to MATLAB .mat files through the scipy.io module. MATLAB files often contain matrices, arrays, and structured data, which can be directly accessed and manipulated in Python using SciPy.

The loadmat() function is used to read MATLAB files and load their contents into Python. When a .mat file is loaded, its variables are represented as a Python dictionary, where the keys correspond to variable names in MATLAB, and the values are the associated data arrays. The syntax of this function is scipy.io.loadmat(file_name, mdict=None, appendmat=True, **kwargs). The file_name parameter specifies the name of the .mat file to read. The mdict parameter is optional and allows inserting the loaded variables into an existing dictionary. The appendmat parameter, if set to True, automatically adds the .mat extension to the file name if it is missing. For example, one can load a MATLAB file named data.mat and display its variable names using:

from scipy.io import loadmat

data = loadmat('data.mat')

print(data.keys())  # displays variable names in MATLAB file

On the other hand, the savemat() function is used to write Python data to MATLAB .mat files. It takes a Python dictionary, where the keys represent variable names and the values are the corresponding arrays, and saves them in a format that MATLAB can read. The syntax is scipy.io.savemat(file_name, mdict, appendmat=True, **kwargs). Here, file_name specifies the name of the output .mat file, mdict is the dictionary containing the data to save, and appendmat automatically appends the .mat extension if it is True. An example of saving Python arrays to a MATLAB file is:

from scipy.io import savemat

import numpy as np

data = {'array1': np.array([1, 2, 3]), 'array2': np.array([4, 5, 6])}

savemat('output.mat', data)

Through these functions, SciPy provides a convenient interface for exchanging data between Python and MATLAB, facilitating the workflow in scientific computing projects. In addition to MATLAB file handling, scipy.io also supports reading from and writing to other formats such as text files, Fortran files, and NetCDF files, making it a versatile tool for scientific data management.

Reading and Writing Fortran and Text Files

SciPy provides several functions to handle numerical data stored in text files or specialized formats such as IDL .sav files, which are widely used in scientific and astronomical computing. These functions allow reading and writing arrays and structured data efficiently, making it easier to integrate external data sources into Python workflows.

The scipy.io.readsav() function is used to read IDL .sav files. These files often contain structured scientific data, and when loaded in Python, the variables are returned as a dictionary or as an IDL object depending on the parameters used. The syntax is scipy.io.readsav(file_name, python_dict=False). The file_name parameter specifies the path to the .sav file. The python_dict parameter, if set to True, ensures that the function returns a Python dictionary rather than an IDL object, making the data easier to manipulate in Python. For example, to read an IDL file named data.sav and access one of its variables, you can use:

from scipy.io import readsav

data = readsav('data.sav', python_dict=True)

print(data['variable_name'])

For writing numerical arrays to text files, SciPy provides the scipy.io.write_array() function. This function converts a NumPy array into a human-readable text format, which is useful for exporting data for reports, documentation, or further processing by other programs. The syntax is scipy.io.write_array(file_name, array, precision=8). The file_name parameter specifies the output text file, array is the NumPy array to write, and precision determines the number of digits after the decimal point for floating-point numbers. An example of writing a 2×2 array to a text file with 4-digit precision is:

from scipy.io import write_array

import numpy as np

arr = np.array([[1.2345, 2.3456], [3.4567, 4.5678]])

write_array('array.txt', arr, precision=4)

Using these functions, SciPy simplifies the process of reading specialized scientific formats like IDL .sav files and exporting numerical data to text files, providing flexible options for precision and data structure. These capabilities are essential in scientific computing projects where data exchange between different software and formats is common.

Reading and Writing NetCDF Files

SciPy provides support for the NetCDF format, which is commonly used for storing multidimensional scientific data such as climate, weather, and oceanographic measurements. The scipy.io.netcdf module allows both reading from and writing to NetCDF files, making it convenient to handle large structured datasets in Python.

The scipy.io.netcdf_file() function is used to open NetCDF files. To read data, the file is opened in read mode 'r', and the variables can be accessed using the variables attribute of the file object. Each variable behaves like a NumPy array, which can be sliced and manipulated as needed. After reading, the file should be closed to free system resources. The syntax for reading a NetCDF file is:

from scipy.io import netcdf

f = netcdf.netcdf_file('file.nc', 'r')

data = f.variables['variable_name'][:]

f.close()

For writing NetCDF files, the same scipy.io.netcdf_file() function can be used in write mode 'w'. The process involves creating dimensions first, followed by creating variables associated with those dimensions. Data can then be assigned to the variables, and the file should be closed after writing. The syntax for writing a NetCDF file is:

from scipy.io import netcdf

f = netcdf.netcdf_file('file.nc', 'w')

f.createDimension('time', 10)

var = f.createVariable('temperature', 'f', ('time',))

var[:] = [20.1, 21.3, 22.5]

f.close()

By using scipy.io.netcdf, SciPy allows seamless integration of NetCDF datasets into Python workflows. It provides a convenient interface for reading, modifying, and storing large multidimensional datasets, which is particularly useful in scientific computing and data analysis projects.
