Advanced Matplotlib Topics

Advanced Matplotlib Topics

Advanced Matplotlib topics involve using the library’s full capabilities to create complex and highly customized visualizations. This includes working with multiple subplots, twin axes, and grids for organized layouts, as well as adding annotations, legends, and text for clarity. It also covers 3D plotting, polar charts, heatmaps, and combining different plot types in a single figure. Overall, these techniques allow for professional, detailed, and publication-quality data visualizations.

1. Object-Oriented Approach

Matplotlib provides an object-oriented (OO) approach to plotting, which gives more control and flexibility compared to the simple pyplot interface. In this approach, plots are created by directly working with Figure and Axes objects rather than using the state-based plt interface. This method is particularly useful for creating complex figures, multiple subplots, or programmatically managing figure elements, as it allows precise control over each component of the plot.

Example:

import matplotlib.pyplot as plt

fig = plt.figure(figsize=(8, 6))

ax = fig.add_subplot(111)  # Adds a single Axes to the figure

ax.plot([1, 2, 3], [4, 5, 6])

ax.set_title('Object-Oriented Plot')

ax.set_xlabel('X-axis')

ax.set_ylabel('Y-axis')

plt.show()

2. Using Figure and Axes Objects Directly

In the OO approach, all plotting commands are executed through the Axes object rather than calling plt functions directly. This includes setting titles, labels, limits, and adding plot elements. The Figure object acts as the top-level container for one or more Axes, and all modifications to subplots or multiple axes are handled via their respective objects. Using these objects directly makes it easier to manage multiple plots in a single figure.

3. Difference Between plt Interface and OO Interface

The plt interface, also called the state-based interface, is simpler and works like MATLAB: it automatically keeps track of the current figure and axes. This is convenient for quick plots or interactive sessions. In contrast, the OO interface explicitly manages Figures and Axes, which provides more clarity and control, especially when creating multiple subplots, complex layouts, or reusable plotting functions. The OO approach is generally preferred for production-quality visualizations and scripts.

4. Customizing Multiple Axes in a Single Figure

The OO approach makes it straightforward to customize multiple axes within the same figure. By creating subplots using fig.add_subplot() or plt.subplots(), each Axes object can be customized independently. You can set titles, labels, limits, and plot different datasets on each Axes without affecting others. This approach is highly beneficial when creating multi-panel figures for reports or publications.

Example:

fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(10, 4))  # 1 row, 2 columns

ax1.plot([1, 2, 3], [4, 5, 6])

ax1.set_title('First Plot')

ax2.plot([1, 2, 3], [6, 5, 4])

ax2.set_title('Second Plot')

plt.show()

5. Managing Figure Hierarchy and Subplots Programmatically

The OO interface allows programmatic control over the figure hierarchy. You can dynamically add, remove, or modify subplots within a figure, control spacing between subplots, and adjust layout properties such as figure size, aspect ratio, and alignment. This level of control is essential for creating complex figures, dashboards, or interactive visualizations that require consistent styling across multiple plots.

Example:

fig, axes = plt.subplots(2, 2, figsize=(8, 6))  # 2x2 grid of subplots

axes[0, 0].plot([1, 2, 3], [4, 5, 6])

axes[0, 0].set_title('Top Left')

axes[0, 1].plot([1, 2, 3], [6, 5, 4])

axes[0, 1].set_title('Top Right')

axes[1, 0].plot([1, 2, 3], [2, 3, 2])

axes[1, 0].set_title('Bottom Left')

axes[1, 1].plot([1, 2, 3], [5, 4, 5])

axes[1, 1].set_title('Bottom Right')

plt.tight_layout()

plt.show()

 2. Customizing Plots in Depth

Customizing plots in depth in Matplotlib involves adjusting every aspect of a visualization to improve clarity, aesthetics, and communication. This includes modifying colors, line styles, markers, fonts, tick marks, legends, and grid lines. You can also control figure size, aspect ratio, and subplot layouts for better presentation. Overall, in-depth customization ensures that plots are not only informative but also visually appealing and tailored to the audience’s needs.

1. Advanced Line Styles, Markers, and Colors

Matplotlib provides extensive options to customize lines, markers, and colors for better visualization and differentiation between datasets. Line styles can be set using parameters like '-', '--', ':', or '-.', while markers such as 'o', 's', '^', and 'x' can be applied to indicate individual data points. Colors can be specified by name, hexadecimal code, RGB tuple, or shorthand notation like 'r' for red. These customizations allow each line or dataset in a plot to stand out clearly, improving readability and aesthetic appeal.

Example:

import matplotlib.pyplot as plt

x = [1, 2, 3, 4, 5]

y1 = [2, 4, 6, 8, 10]

y2 = [1, 3, 5, 7, 9]

plt.plot(x, y1, color='red', linestyle='--', marker='o', label='Line 1')

plt.plot(x, y2, color='green', linestyle=':', marker='s', label='Line 2')

plt.title('Advanced Line Styles')

plt.xlabel('X-axis')

plt.ylabel('Y-axis')

plt.legend()

plt.show()

2. Using Custom Color Maps and Gradients

For plots representing large datasets or additional dimensions, color maps can be used to visually encode data values. Matplotlib offers predefined colormaps such as 'viridis', 'plasma', 'coolwarm', and 'rainbow'. Color gradients can also be applied to lines, scatter plots, or heatmaps to indicate magnitude or intensity. This is especially useful in scatter plots and surface plots to provide visual cues about data distribution.

Example:

import numpy as np

values = [10, 20, 30, 40, 50]

plt.scatter(x, y1, c=values, cmap='plasma', s=100)

plt.colorbar()  # Shows the color scale

plt.show()

3. Controlling Axis Scales (Linear, Logarithmic, Symlog)

Matplotlib allows fine control over axis scaling to represent data appropriately. Linear scales are the default, but logarithmic (log) and symmetric logarithmic (symlog) scales can be applied using plt.xscale() and plt.yscale(). Logarithmic scaling is particularly useful when data spans multiple orders of magnitude, while symlog scales combine linear behavior near zero with logarithmic behavior elsewhere. Proper axis scaling ensures that trends and patterns in data are correctly visualized.

Example:

plt.plot(x, [1, 10, 100, 1000, 10000])

plt.yscale('log')

plt.title('Logarithmic Scale Example')

plt.show()

4. Fine-Tuning Ticks, Tick Labels, and Spines

Matplotlib allows precise customization of axis ticks, tick labels, and spines (the borders of the plotting area). Tick locations can be set using set_xticks() and set_yticks(), while labels can be formatted with set_xticklabels() and set_yticklabels(). Spines can be repositioned, hidden, or styled for better visual presentation. These adjustments improve readability and create professional-looking figures.

Example:

fig, ax = plt.subplots()

ax.plot(x, y1)

ax.set_xticks([1, 2, 3, 4, 5])

ax.set_yticks([0, 5, 10])

ax.spines['top'].set_visible(False)

ax.spines['right'].set_color('blue')

plt.show()

5. Adding Annotations and Arrows with plt.annotate()

Annotations allow adding textual or graphical information to highlight specific points or trends in a plot. The plt.annotate() function can add text along with arrows pointing to particular data points, which is useful for emphasizing key insights or anomalies. Annotations can be positioned precisely using data coordinates or offset positions.

Example:

plt.plot(x, y1)

plt.annotate('Peak Point', xy=(3, 6), xytext=(4, 8),

             arrowprops=dict(facecolor='black', shrink=0.05))

plt.show()

3. 3D Plotting

1. Introduction to mpl_toolkits.mplot3d

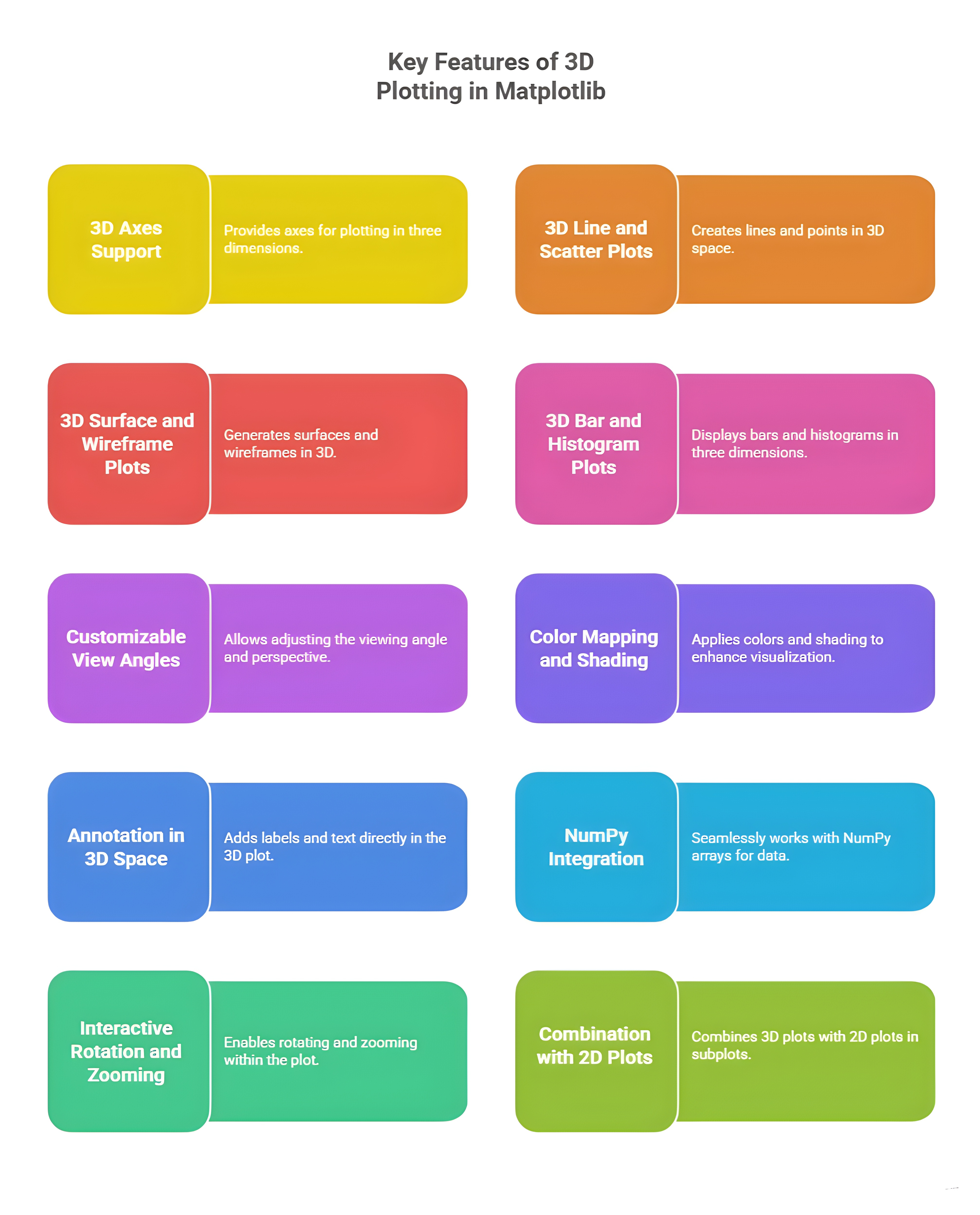

Matplotlib provides support for 3D plotting through the mpl_toolkits.mplot3d module, which extends the 2D plotting capabilities of Matplotlib into three dimensions. By using this toolkit, users can create three-dimensional plots with X, Y, and Z axes, allowing visualization of data that varies across three dimensions. The 3D plotting interface integrates seamlessly with the Matplotlib object-oriented approach, enabling customization of figure size, axis labels, titles, and plot elements.

Example:

from mpl_toolkits.mplot3d import Axes3D

import matplotlib.pyplot as plt

fig = plt.figure()

ax = fig.add_subplot(111, projection='3d')

plt.show()

2. 3D Line Plots and Scatter Plots

3D line plots connect points in three-dimensional space using lines, while 3D scatter plots represent data points as discrete markers in 3D space. Both types of plots are useful for visualizing relationships between three variables or exploring patterns in multi-dimensional datasets. The plot() and scatter() functions are used with 3D Axes objects to create these visualizations.

Example (3D Line Plot):

ax.plot([1, 2, 3], [4, 5, 6], [7, 8, 9])

plt.show()

Example (3D Scatter Plot):

ax.scatter([1, 2, 3], [4, 5, 6], [7, 8, 9], c='r', marker='o')

plt.show()

3. 3D Surface and Wireframe Plots

Surface plots and wireframe plots are used to visualize 3D functions or surfaces in space. Surface plots display a continuous surface, while wireframe plots show only the grid lines forming the surface. These plots are particularly useful for analyzing mathematical functions, topography, or any data that varies continuously across two dimensions. They are created using the plot_surface() and plot_wireframe() methods of a 3D Axes object, and they support color maps and lighting effects for enhanced visualization.

Example (3D Surface Plot):

import numpy as np

X = np.linspace(-5, 5, 50)

Y = np.linspace(-5, 5, 50)

X, Y = np.meshgrid(X, Y)

Z = np.sin(np.sqrt(X**2 + Y**2))

ax.plot_surface(X, Y, Z, cmap='viridis')

plt.show()

Example (3D Wireframe Plot):

ax.plot_wireframe(X, Y, Z, color='black')

plt.show()

4. 3D Bar Charts and Contour Plots

3D bar charts extend the concept of 2D bar charts into three dimensions, with the height of each bar representing a value in 3D space. They are created using the bar3d() method and are useful for comparing multiple variables simultaneously. 3D contour plots represent surfaces by plotting contour lines in three dimensions, providing a topographical view of the data. Both visualization types are effective for multi-dimensional analysis and presentations.

Example (3D Bar Chart):

ax.bar3d([1,2,3], [1,2,3], [0,0,0], 1, 1, [3,5,2], color='cyan')

plt.show()

Example (3D Contour Plot):

ax.contour3D(X, Y, Z, 50, cmap='coolwarm')

plt.show()

4. Advanced Text and Labeling

Advanced text and labeling in Matplotlib involves adding detailed annotations, custom labels, and styled text to plots for better clarity and communication. This includes positioning text at specific coordinates, using LaTeX formatting, rotating labels, and customizing font size, color, and style. It also covers adding arrows, callouts, and legends to highlight important data points. Overall, advanced text and labeling enhance the interpretability and professionalism of visualizations.

1. Adding LaTeX-Style Mathematical Expressions

Matplotlib supports LaTeX-style formatting for mathematical expressions, allowing users to include complex equations, symbols, and formulas in titles, labels, and annotations. By enclosing the expression in dollar signs ($...$), Matplotlib renders it using LaTeX syntax. This feature is particularly useful for scientific publications, academic plots, or any visualization requiring precise mathematical notation.

Example:

import matplotlib.pyplot as plt

import numpy as np

x = np.linspace(0, 10, 100)

y = np.sin(x)

plt.plot(x, y)

plt.title(r'$\sin(x)$ Function')  # LaTeX-style title

plt.xlabel(r'$x$-axis')

plt.ylabel(r'$y = \sin(x)$')

plt.show()

2. Rotating and Styling Labels

Axis labels, tick labels, and text annotations can be rotated and styled for better readability or to fit complex layouts. The rotation parameter rotates text to a desired angle, while font properties such as fontsize, fontweight, and color allow full control over styling. This customization is essential for plots with dense labels or multi-panel figures where label clarity is critical.

Example:

labels = ['A', 'B', 'C', 'D']

values = [5, 7, 3, 8]

plt.bar(labels, values)

plt.xticks(rotation=45, fontsize=12, color='blue')

plt.yticks(fontsize=12, color='green')

plt.show()

3. Custom Legends and Handles

Matplotlib allows detailed customization of legends to improve plot interpretability. Legends can include multiple entries, custom labels, and handles that correspond to specific plot elements. Properties such as location, font size, frame style, and transparency can also be adjusted. Custom legends are particularly useful when multiple datasets, markers, or lines are plotted together.

Example:

plt.plot([1,2,3], [4,5,6], label='Line 1', color='red')

plt.plot([1,2,3], [6,5,4], label='Line 2', color='green')

plt.legend(loc='upper left', fontsize=12, frameon=True, shadow=True)

plt.show()

4. Annotating with Arrows, Boxes, and Callouts

Annotations allow adding textual explanations or highlights to specific points in a plot. Using plt.annotate(), arrows, boxes, or callouts can point to important data points or regions. The arrowprops parameter customizes the arrow style, color, and width, while text boxes can include backgrounds, borders, or transparency for emphasis. Proper annotation helps viewers quickly understand key aspects of the visualization.

Example:

plt.plot([1,2,3,4], [4,3,5,6])

plt.annotate('Peak Value', xy=(4,6), xytext=(2,5),

             arrowprops=dict(facecolor='black', shrink=0.05, width=2))

plt.show()

5. Plot Styling and Themes

Plot styling and themes in Matplotlib involve applying predefined or custom styles to improve the visual appeal and consistency of plots. You can use built-in styles like ggplot or seaborn, or create custom color palettes, line styles, and marker themes. Styling also includes adjusting figure backgrounds, gridlines, and font properties for a polished look. Overall, plot styling and themes make visualizations more attractive, readable, and professional.

1. Using plt.style.use() and Custom Stylesheets

Matplotlib allows the application of predefined or custom stylesheets to change the overall appearance of plots. Using the plt.style.use() function, users can quickly apply a style that adjusts colors, fonts, line widths, grid visibility, and other visual elements. Custom stylesheets can also be created or imported to maintain consistent branding or design across multiple figures. This approach simplifies creating professional and visually appealing plots without manually modifying individual elements.

Example:

import matplotlib.pyplot as plt

import numpy as np

plt.style.use('seaborn-darkgrid')  # Apply a predefined style

x = np.linspace(0, 10, 100)

y = np.sin(x)

plt.plot(x, y)

plt.title('Styled Plot Example')

plt.show()

2. Applying Seaborn-Inspired or ggplot-Like Themes

Matplotlib supports themes inspired by other visualization libraries like Seaborn or ggplot2 in R. These themes adjust default colors, grid styles, and figure aesthetics to match popular visual conventions. By using these themes, plots can achieve a modern, clean, and publication-ready look with minimal effort. This is particularly useful when combining Matplotlib with Seaborn for advanced statistical plotting.

Example:

plt.style.use('ggplot')  # Apply ggplot-like theme

plt.plot(x, y, color='blue', linewidth=2)

plt.title('ggplot-Inspired Theme')

plt.show()

3. Global Customization with rcParams

Matplotlib’s rcParams dictionary provides global control over nearly every aspect of figure and plot styling. Users can customize font sizes, line widths, figure size, DPI, grid styles, and more. Adjusting rcParams is useful for ensuring consistency across multiple plots in a project or report, and it eliminates the need to repeatedly specify styling options for each plot individually.

Example:

plt.rcParams['figure.figsize'] = (10, 6)

plt.rcParams['axes.titlesize'] = 16

plt.rcParams['axes.labelsize'] = 14

plt.rcParams['lines.linewidth'] = 2

plt.rcParams['grid.linestyle'] = '--'

plt.plot(x, y)

plt.title('Customized with rcParams')

plt.xlabel('X-axis')

plt.ylabel('Y-axis')

plt.grid(True)

plt.show()

Integration with Other Libraries

1. Combining Matplotlib with Pandas

Matplotlib integrates seamlessly with Pandas, allowing users to directly plot data from DataFrames and Series. Pandas provides built-in plotting methods, such as df.plot(), which internally use Matplotlib for rendering. This integration simplifies visualizing structured datasets, performing quick exploratory data analysis, and customizing plots with Matplotlib’s full functionality. Users can combine Pandas’ data manipulation capabilities with Matplotlib’s extensive plotting features to create informative and professional charts.

Example:

import pandas as pd

import matplotlib.pyplot as plt

data = {'Month': ['Jan', 'Feb', 'Mar', 'Apr'],

        'Sales': [250, 300, 280, 350]}

df = pd.DataFrame(data)

df.plot(x='Month', y='Sales', kind='bar', color='skyblue', legend=False)

plt.title('Monthly Sales')

plt.ylabel('Sales')

plt.show()

2. Combining Matplotlib with NumPy

NumPy is frequently used alongside Matplotlib to generate and manipulate numerical data for plotting. NumPy arrays can be directly passed to Matplotlib plotting functions, making it easy to plot mathematical functions, simulations, or large datasets. The combination of NumPy’s fast numerical operations and Matplotlib’s plotting capabilities is essential for scientific computing, data analysis, and modeling tasks in Python.

Example:

import numpy as np

x = np.linspace(0, 10, 100)

y = np.sin(x)

plt.plot(x, y, color='red', linestyle='--')

plt.title('Sine Wave')

plt.xlabel('X-axis')

plt.ylabel('Y-axis')

plt.show()

3. Integration Summary

Using Matplotlib in combination with Pandas and NumPy allows for efficient and flexible plotting workflows. Pandas makes handling and summarizing tabular data simple, while NumPy provides high-performance numerical computations. Together with Matplotlib, these libraries form the core of Python’s data analysis and visualization ecosystem, enabling users to generate both quick exploratory plots and highly customized publication-quality figures.
