Convolutional Networks (CNN Variations, Efficient Architectures)

Convolutional Neural Networks (CNNs) are a specialized class of deep learning models designed primarily for processing structured grid-like data such as images.

By leveraging convolutional layers, these networks can automatically learn spatial hierarchies of features, making them highly effective for tasks like image recognition, object detection, and video analysis.

Over time, various CNN architectures and variations have been developed to enhance efficiency, accuracy, and suitability for diverse applications.

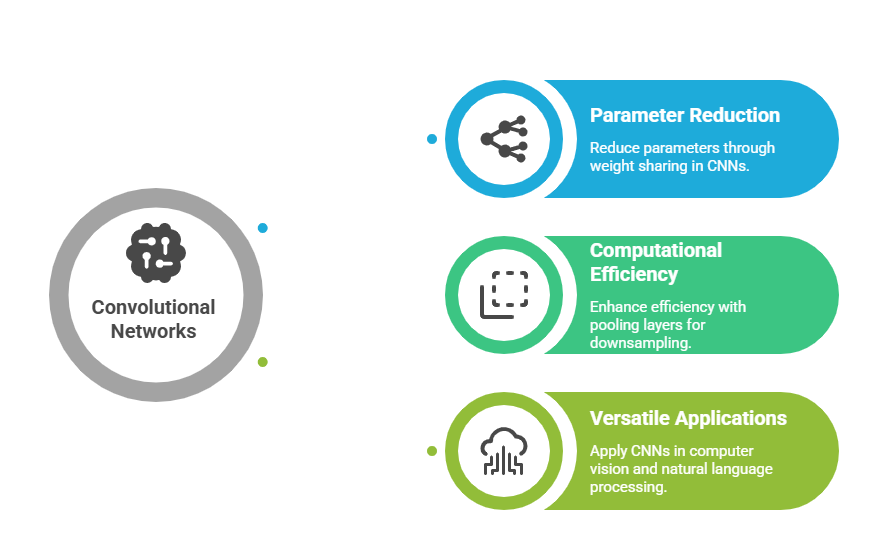

Introduction to Convolutional Networks

CNNs exploit spatial relationships in data by applying convolutional filters that slide over input matrices, detecting local patterns such as edges, textures, and shapes.

Variations of CNN Architectures

Several CNN variations have been proposed to optimize performance, model size, and computational cost:

1. Classic CNNs:

Inspired by LeNet architecture, consisting of sequential convolution, activation, and pooling layers.

Early models serve as the foundation for deeper and more complex variants.

2. VGG Networks:

Deep architectures with uniformly small-sized (3x3) convolutional filters.

Characterized by simplicity and uniformity, but requires substantial computation.

3. ResNet (Residual Networks)

Introduced skip connections to mitigate the vanishing gradient problem in deep nets.

Allows training of very deep architectures (50, 101, or more layers).

Residual blocks add identity mappings to facilitate gradient flow.

4. Inception Networks (GoogLeNet):

Use parallel convolutional layers with different filter sizes (1x1, 3x3, 5x5) within the same module.

Efficiently capture multi-scale features at each layer.

Employ dimensionality reduction (1x1 convolutions) to reduce computational burden.

Efficient Architectures

The demand for CNNs on resource-constrained devices led to efficient CNN designs:

1. MobileNet

MobileNet introduces depthwise separable convolutions, breaking standard convolution into depthwise and pointwise operations.

This significantly cuts down computational cost and reduces the model's overall size without heavily compromising accuracy. Because of its lightweight structure, it is widely used in mobile and embedded systems where resources are limited.

2. EfficientNet

EfficientNet applies compound scaling, which proportionally increases a model’s depth, width, and resolution for balanced performance.

It achieves high accuracy with fewer parameters by building on a baseline architecture discovered through neural architecture search. The result is a family of models known for state-of-the-art efficiency across a wide range of tasks.

3. ShuffleNet

ShuffleNet focuses on extreme efficiency using pointwise group convolutions paired with channel shuffle operations. This design minimizes computation and memory usage, making it suitable for environments with strict latency and power limits.

Its architecture is tailored specifically for ultra-lightweight deployments such as IoT devices and low-power mobile hardware.

Key Concepts in CNN Variations

Below are the fundamental concepts that drive architectural variations in modern CNNs. These principles enhance feature extraction, efficiency, and overall model performance.

1. Convolutions: Extract localized features; filter sizes and strides affect receptive fields.

2. Pooling: Max or average pooling reduces spatial size, controls overfitting, and increases abstract feature extraction.

3. Skip Connections: In Residual networks, these avoid degradation by allowing gradient flow around layers.

4. Multi-Scale Feature Extraction: Inception modules capture features at different scales simultaneously.

5. Depthwise Separable Convolutions: Split convolutions for efficiency by filtering inputs separately and then combining.

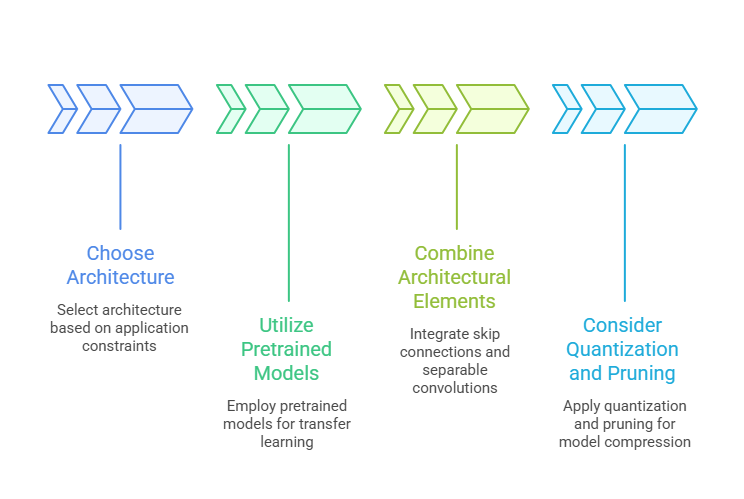

Practical Implementation Tips
